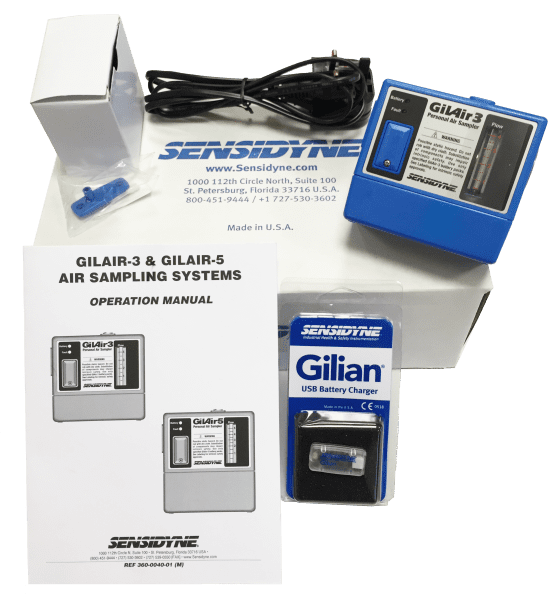

GilAir 3 Basic Pump (for filling sample bags)

The GilAir-3 Basic is a robust and reliable air sampling pump designed for accurate collection of air and gas samples. When combined with the Low Flow Constant Flow Module (adjustable from 25 to 500 ml/min), this pump is particularly well-suited for filling Tedlar bags and other gas sampling bags.

Contact us for a quote and availability.

501350 ,

The GilAir-3 Basic is a robust and reliable air sampling pump designed for accurate collection of air and gas samples. When combined with the Low Flow Constant Flow Module (adjustable from 25 to 500 ml/min), this pump is particularly well-suited for filling Tedlar bags and other gas sampling bags.

Application with Tedlar Bags

Simply connect the tubing attached to the air sample bag to the outlet of the pump. The desired flow rate can be adjusted using the Low Flow module. Thanks to the constant flow control, the bag is filled evenly—without overpressure or leakage.

Note: Always use clean, dry, and odor-free air to avoid contamination of the sample.

GilAir-3 Air Sampling Pump

Automatic constant flow control – the key feature of any sampling pump – comes standard with every GilAir-3. This function ensures that flow remains within ±5% of the initial setpoint, even under varying back pressures due to flow restrictions or filter loading.

Specifications – GilAir-3 Pump

✔ Flow range: 25–500 ml/min (adjustable via module)
✔ Constant flow, even under resistance
✔ Compact, portable, and powered by NiMH battery
✔ Suitable for air and gas sampling in laboratory or field settings

👉 Ideal for use with Tedlar bags, multi-foil bags, and other gas sampling bags

Contact us for pricing and availability.
