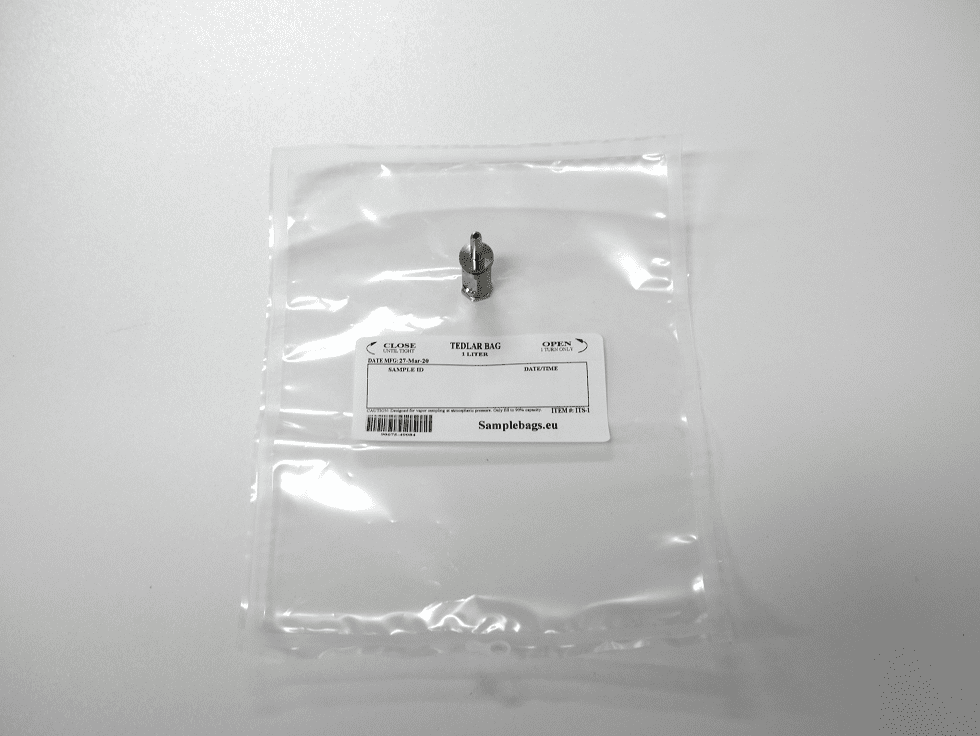

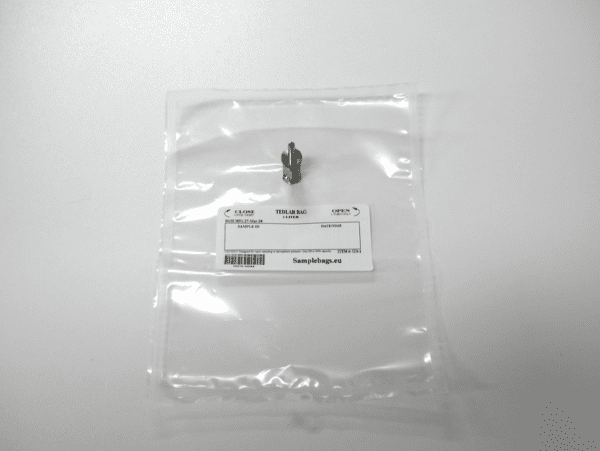

These Tedlar gas sampling bags have a single stainless steel fitting. This SS fitting combines the valve and the septum in one.
These bags are made of DuPont’s 2mil Tedlar® PVF film and will be delivered with a single stainless steel fitting. Tedlar® PVF film is tough, durable, and considered chemically inert to a wide range of compounds. Bags of Tedlar® film can be used for indoor air sampling, hazardous waste sites, leaking underground storage tanks, stack sampling, soil gas sampling, gas blending, calibration test standards, and most other gas sampling needs.
Available Tedlar Bags
We have Tedlar bags with SS fitting are available in different sizes. Select the desired bags above.
0,5 liter, 12,7 x 22,86 cm (package of 10 bags)
0,7 liter (package of 10 bags)
1 liter, 22,86 x 17,78 cm (package of 10 bags)
3 liter, 22,86 x 33,02 cm (package of 10 bags)
5 liter, 40,64 x 25,40 cm (package of 10 bags)
10 liter, 40 x 41,91 cm (package of 10 bags)
25 liter, 50,8 x 60,96 cm (package of 5 bags)
50 liter, 50,8 x 76,20 cm (package of 5 bags)
100 liter, 50,8 x 121,92 cm (package of 5 bags)
200 liter, 121 x 67 cm (package of 1 bag)
500 liter, 121,92 x 168,64 cm (package of 1 bag)
1.000 liter, 121,92 x 274,32 cm (package of 1 bag)
We have the bags from 0.5 liters to 25 liters available from stock. Need larger quantities? Please contact us for a quotation.
Stainless Steel Fitting Tedlar Bags

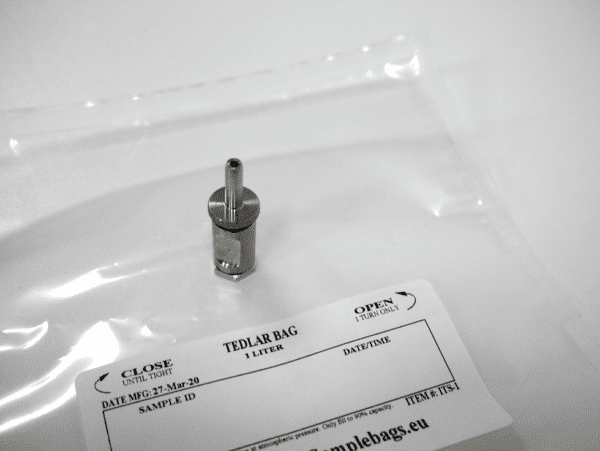

All our Tedlar gas bags have a patented 2-in-1 fitting. This fitting combines the valve and the septum in one. You can connect a 3/16″ tubing to the fitting.
We supply the Tedlar gas sampling bags with a stainless steel fitting, but we can also supply the bags with a polypropylene or PTFE fitting.
Custom made Tedlar Bags?
In addition to the standard Tedlar bags, we can also produce custom-made bags with dimensions according to your wishes. We have a lot of experience in producing custom made Tedlar bags. Please contact us for more information.
These Tedlar bags are open on one side (not sealed). You can close this open side yourself using a clip-seal rod (also know as a c-clamp). This way you can place objects (or liquids) in the sampling bag and then seal the bag airtight and leak-free.
The bag has a single fitting, you can choose from a single polypropylene, PTFE or stainless steel valve.
